Vortex Series LED Display

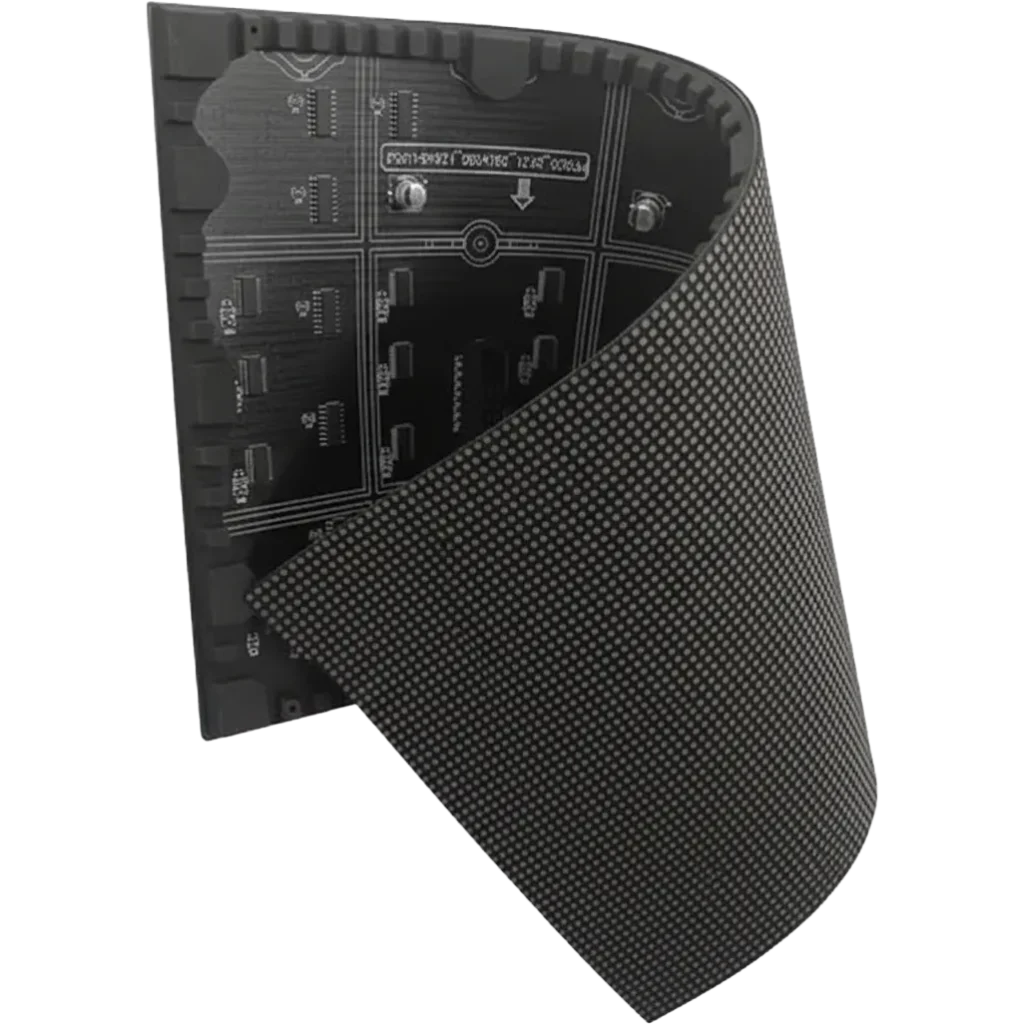

Vortex Series is a kind of soft module with soft material PCB, strong flexibility. The curve angle of the whole screen can be customized, such as cylinder screen, wave screen, and various special-shaped creative curve screens. Available in 1.6, 1.875, and 2.5 pixel pitches.
Vortex Series Specifications
Designed for comfort and performance, this display reduces visual fatigue with anti-blue light technology while delivering ultra-smooth visuals through a high refresh rate, rich grayscale, and high contrast. Its flexible construction allows the screen to curve easily, enabling creative, custom installations across a wide range of environments. Combined with energy-efficient operation and support for multiple installation types, it offers a highly adaptable, personalized display solution.
| Spec | VO1.6 | VO1.875 | VO2.5 |
|---|---|---|---|
| Pixel Pitch (mm) | 1.667 | 1.875 | 2.5 |
| Pixel Density (pixels/m²) | 359,856 | 284,444 | 160,000 |
| LED Type | SMD1010 | SMD1010 | SMD1515 |
| Module Dimension | 240×120mm | 240×120mm | 320×160mm |
| Module Resolution | 144×72 | 128×64 | 128×64 |
| Module Weight | 0.75kg | 0.75kg | 0.75kg |
| Typical Brightness | 800nits | 800nits | 800nits |
| Viewing Angle | H160°/V160° | H160°/V140° | H160°/V140° |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Operating Power Source | 100–240V, 50–60Hz | 100–240V, 50–60Hz | 100–240V, 50–60Hz |
| Max Power Consumption (W/m²) | 720 | 732 | 718 |
| Avg Power Consumption (W/m²) | 230 | 234 | 230 |
| Serviceability | Front | Front | Front |
| IP Rating | IP43 (Indoor) | IP43 (Indoor) | IP43 (Indoor) |
| Operating Temp/Humidity | -20°~55°C, 10~90% RH | -20°~55°C, 10~90% RH | -20°~55°C, 10~90% RH |
| Storage Temp/Humidity | -40°~60°C, 10~90% RH | -40°~60°C, 10~90% RH | -40°~60°C, 10~90% RH |
| Life Span | 100,000 h | 100,000 h | 100,000 h |
